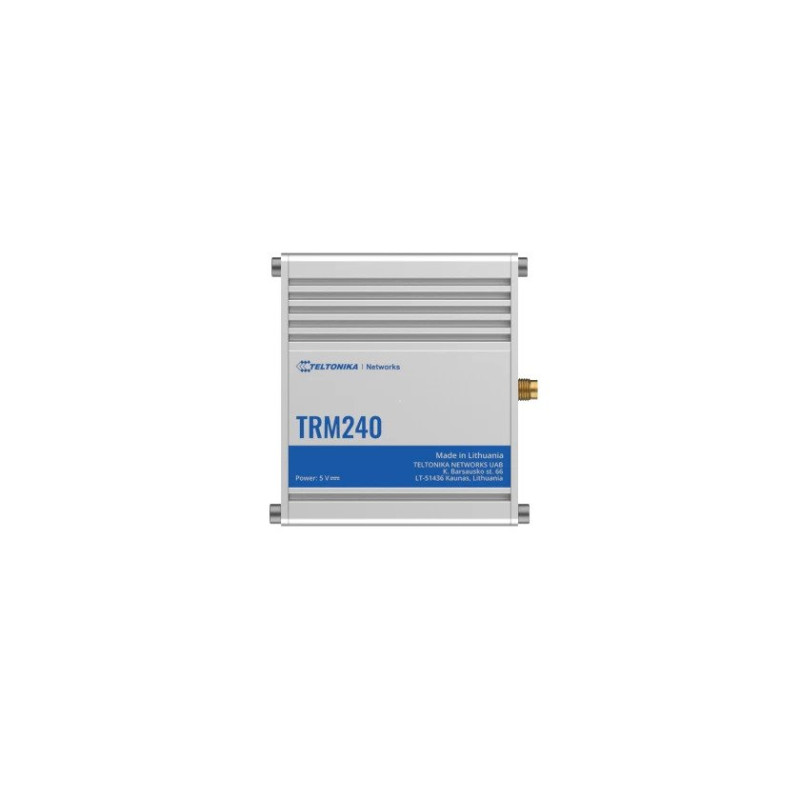

TRM240

MOBILE

Mobile module

4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

POWER

Connector

microUSB

Input voltage range

5V - powered via microUSB

Power consumption

3.2 W Max

PHYSICAL INTERFACES

Status LEDs

1 x Power LED, 1 x Network LED, 1 x LTE LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1x microUSB

Antennas

1 x SMA for LTE

Dimensions (W x H x D)

74.5 x 25 x 64.5 mm

PHYSICAL SPECIFICATION

Casing material

Aluminum housing

Weight

131 g

Mounting options

DIN rail, Flat surface

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

TRM SOFTWARE

Management Software

Windows Connection Manager (NDIS driver)

USB Driver

Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x

RIL Driver

Android 4.x/5.x/6.x/7.x/8.x

NDIS Driver

Windows 7/8/8.1/10

Gobinet Driver

Linux 2.6/3.x/4.1~4.14

Linux Driver

3.x (3.4 and later)/4.1~4.14

Pagina produsului: https://teltonika-networks.com/products/modems/trm240
