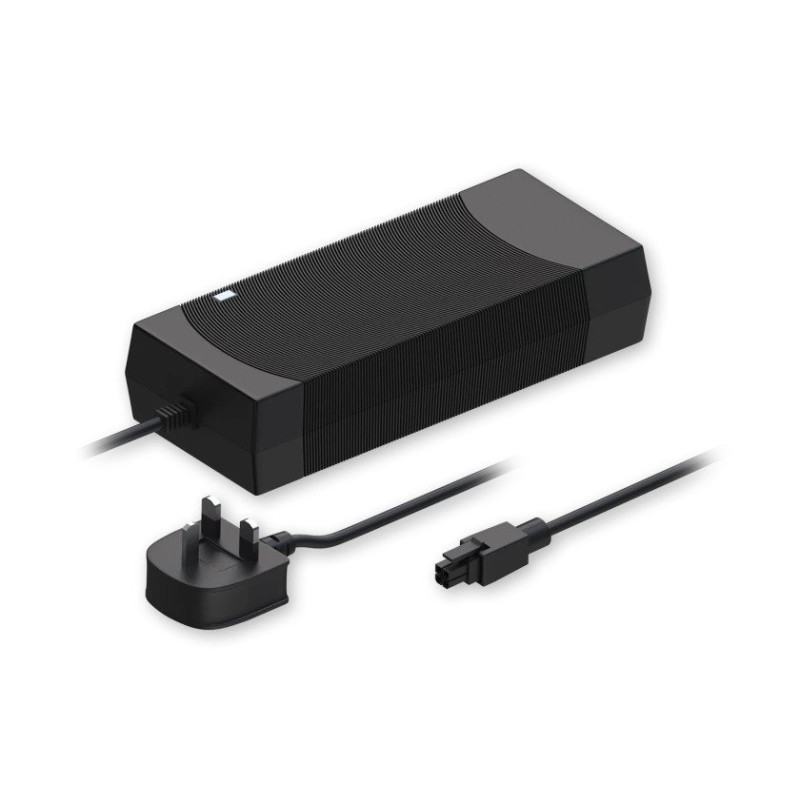

UK POWER SUPPLY, 130W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

2.5 A

Input connector

UK (Type G)

Output voltage

50 VDC

Output current

2.6 A

Output connector

4-pin, 3 mm pitch

Weight

660 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

50 A

Output voltage maximum deviation

47.5 – 52.5 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4242 VDC

MTBF

50000 h

PSU efficiency standard

DoE Level VI

Certification

Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008

EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
