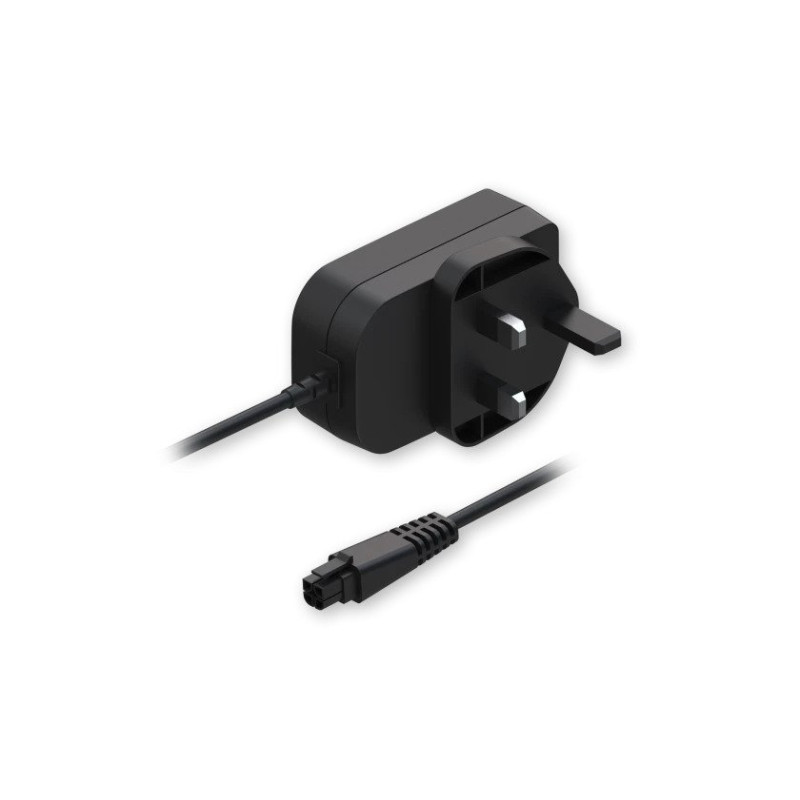

UK POWER SUPPLY, 24W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

0.8 A

Input connector

UK (Type G)

Output voltage

12 VDC

Output current

2.0 A

Output connector

4-pin, 3 mm pitch

Weight

120 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

11.4 – 12.6 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

PSU efficiency standard

DoE Level VI

Certification

Safety: EN 62368-1:2014+A11:2017

EMC: EN 55032:2015, Class B; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013

Energy efficiency: EN 50563:2011+A1:2013; EN 50564:2011; 10 CFR 430 Appendix Z: 2015
