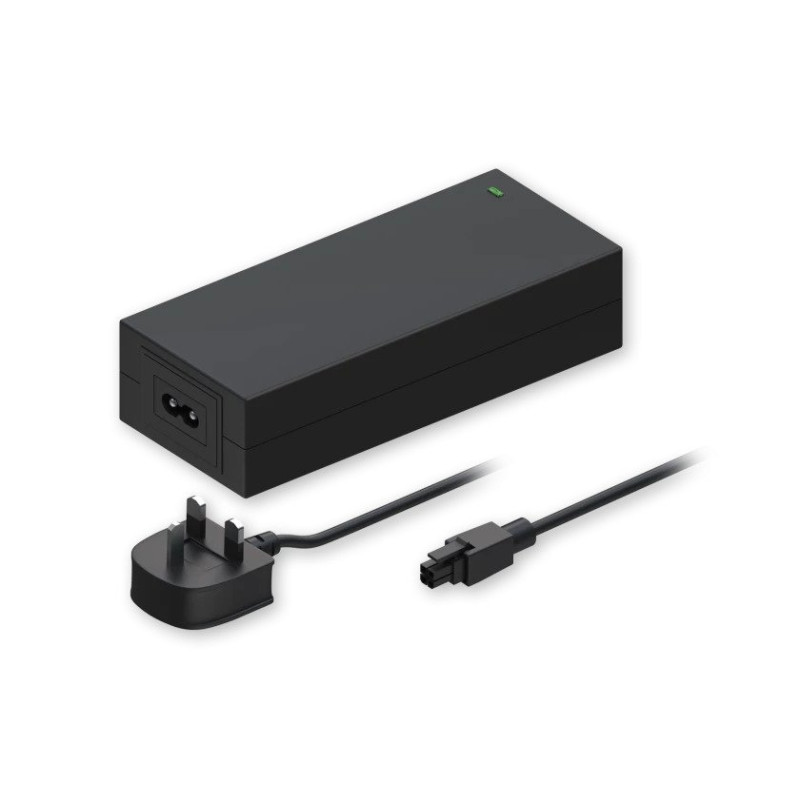

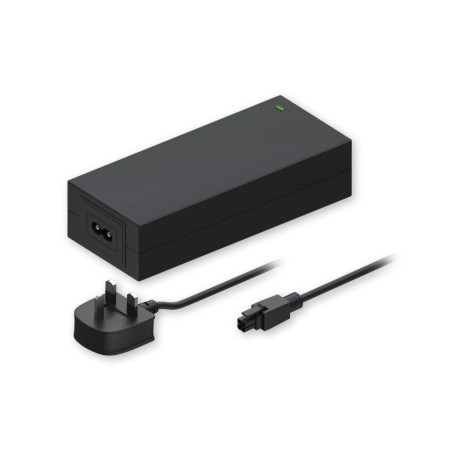

UK POWER SUPPLY, 62W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

1.5 A

Input connector

UK (Type G)

Output voltage

48 VDC

Output current

1.3 A

Output connector

4-pin, 3 mm pitch

Weight

380 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

50 A

Output voltage maximum deviation

45.6 – 50.4 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

50000 h

Certification

Safety: IEC/EN 61558-1:2005+A1:2009, IEC/EN 61558-2-16:2009+A1:2013 (CB Scheme)

EMC: EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015
