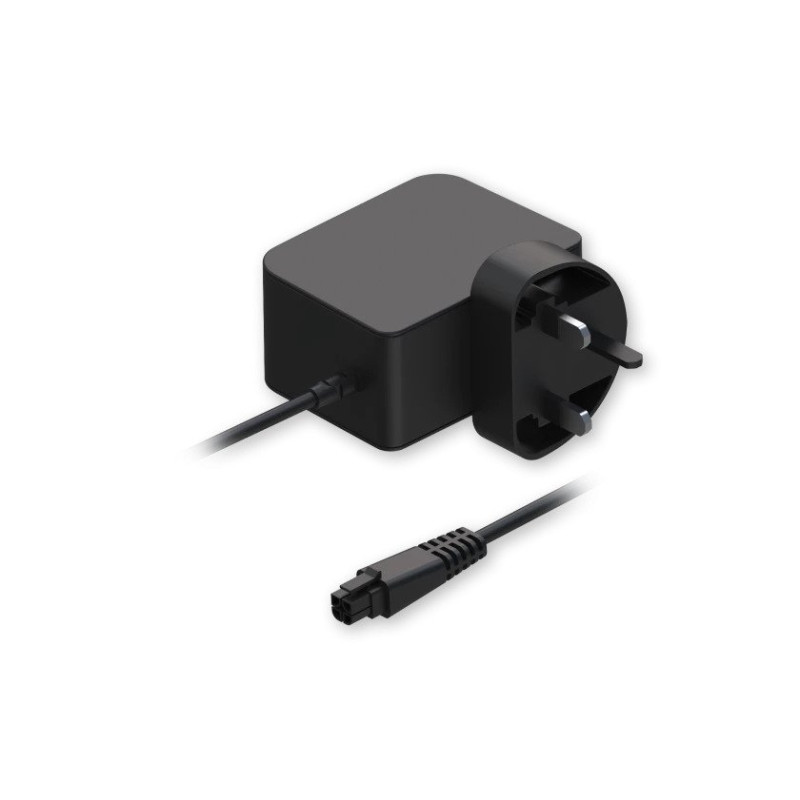

UK POWER SUPPLY, 9W
SURSA DE ALIMENTARE UK, 9W
Cod comanda: PR3PUUK3
TECHNICAL DATA
GENERAL
Input voltage
100 – 240 VAC
Input frequency
50 / 60 Hz
Input current
0.45 A
Input connector
UK (Type G)
Output voltage
9 VDC
Output current
1.0 A
Output connector
4-pin, 3 mm pitch
Weight
85 g
ADDITIONAL
Input voltage range
90 – 264 VAC
Input frequency range
47 – 63 Hz
Maximum input inrush current
60 A
Output voltage maximum deviation
8.55 – 9.45 VDC
Short circuit protection
✓
HIPOT (dielectric withstand test)
Primary to Secondary: 4000 VDC
MTBF
30000 h
PSU efficiency standard
DoE Level VI
Certification
Safety: IEC 62368-1:2014/A11:2017
EMC: EN 55032:2015, EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015
CB Scheme: IEC 62368-1:2014
RoHS: 2011/65/EU
Energy efficiency: Efficiency level: VI
Pagina produsului: https://teltonika-networks.com/products/accessories/powering-options/uk-power-supply-9w
