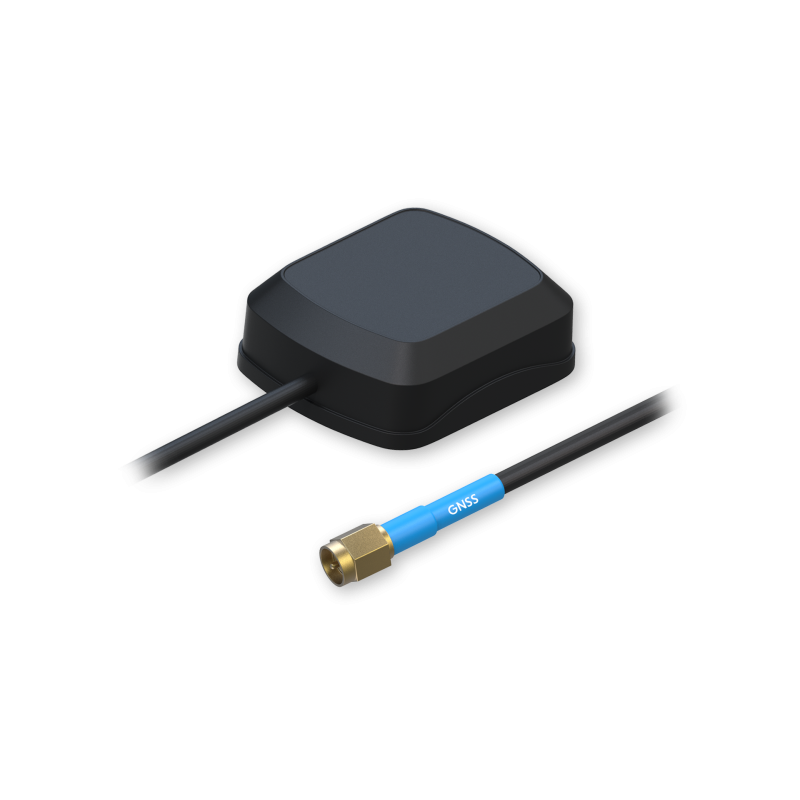

GNSS ADHESIVE SMA ANTENNA
GNSS ANTENA ADEZIVĂ SMA
Cod comanda: PR1KSG30
PARAMETER
Frequency range
1575 ~ 1602 MHz
Polarization
RHCP
Gain
2.0 dBi
VSWR
1.5
Impedance
50 Ω
Axial ratio
3 dB
LNA gain
26 ± 2 dB
LNA noise figure
1.5 dB
Supply voltage
2.2 – 5.0 VDC
Current consumption
5 – 15 mA
LNA VSWR
2.0
Cable
RG174, 3000 mm
Connector type
SMA Male
Mounting method
Adhesive
Operating temperature
–40 ~ +85
Operating relative humidity
95 %
RoHS compliant ✓
Pagina produsului: https://teltonika-networks.com/products/accessories/antenna-options/gnss-adhesive-sma-antenna
