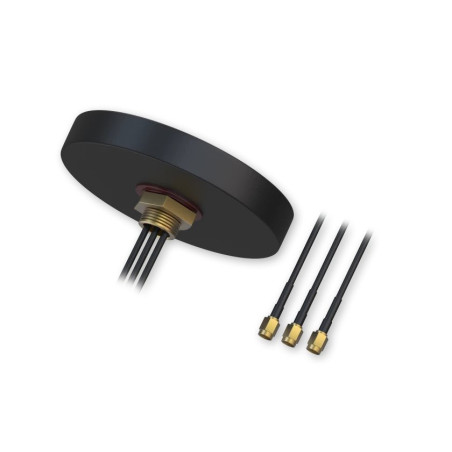

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA

WIFI ANTENNA

Frequency range

2350 - 2500 MHz

Polarization

Linear

Radiation pattern

Omni - Directional

Gain

2.5 dBi

V.S.W.R

1.5 : 1

Impedance

50 Ω

Connector

RP SMA Male

GNSS ANTENNA

Frequency range

1575 - 1610 MHz

Polarization

RHCP

V.S.W.R

1.5 : 1

Impedance

50 Ω

LNA Gain

28 dBi

LNA Noise figure

1.5 dB

Supply voltage

2.7 - 5.0 ± 0.5 VDC

Current consumption

< 15 mA

Connector type

SMA Male

LTE ANTENNA

Frequency range

617 - 960 / 1710 - 2690 MHz

Polarization

Linear

Radiation pattern

Omni - Directional

Gain

3.5 dBi

V.S.W.R

1.5 : 1

Impedance

50 Ω

Connector type

SMA Male

MECHANICAL/ENVIRONMENTAL

Mounting method

Screw

Radome ingress protection rating

IP67

Radome material

ABS

Weight

215 g

Housing dimensions

Ø 80.5 x 15.2 mm

Cable

3 x RG174, 3000 mm

Operating temperature

-40 ~ +85 °C

UV resistance

✓

RoHS Compliant

✓
